SIP Industrial Professional Tilting Spindle Moulder

The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.

Designed for home, trade, and professional woodwork applications.

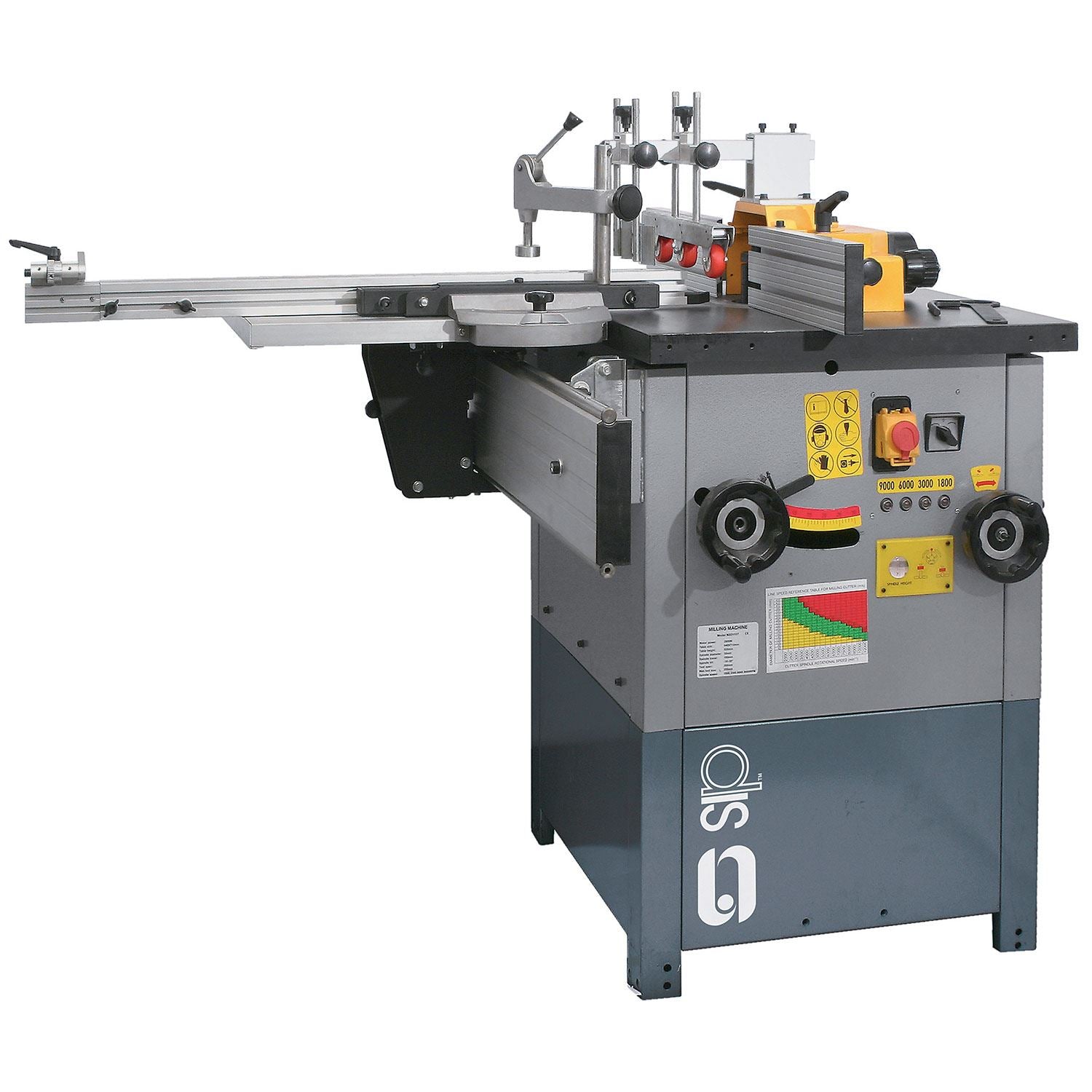

Machine shown with optional SIP Sliding Carriage (01457).

• Versatile -10� to +30� spindle tilting shaft angle
• Comfortable working height with cast iron work table

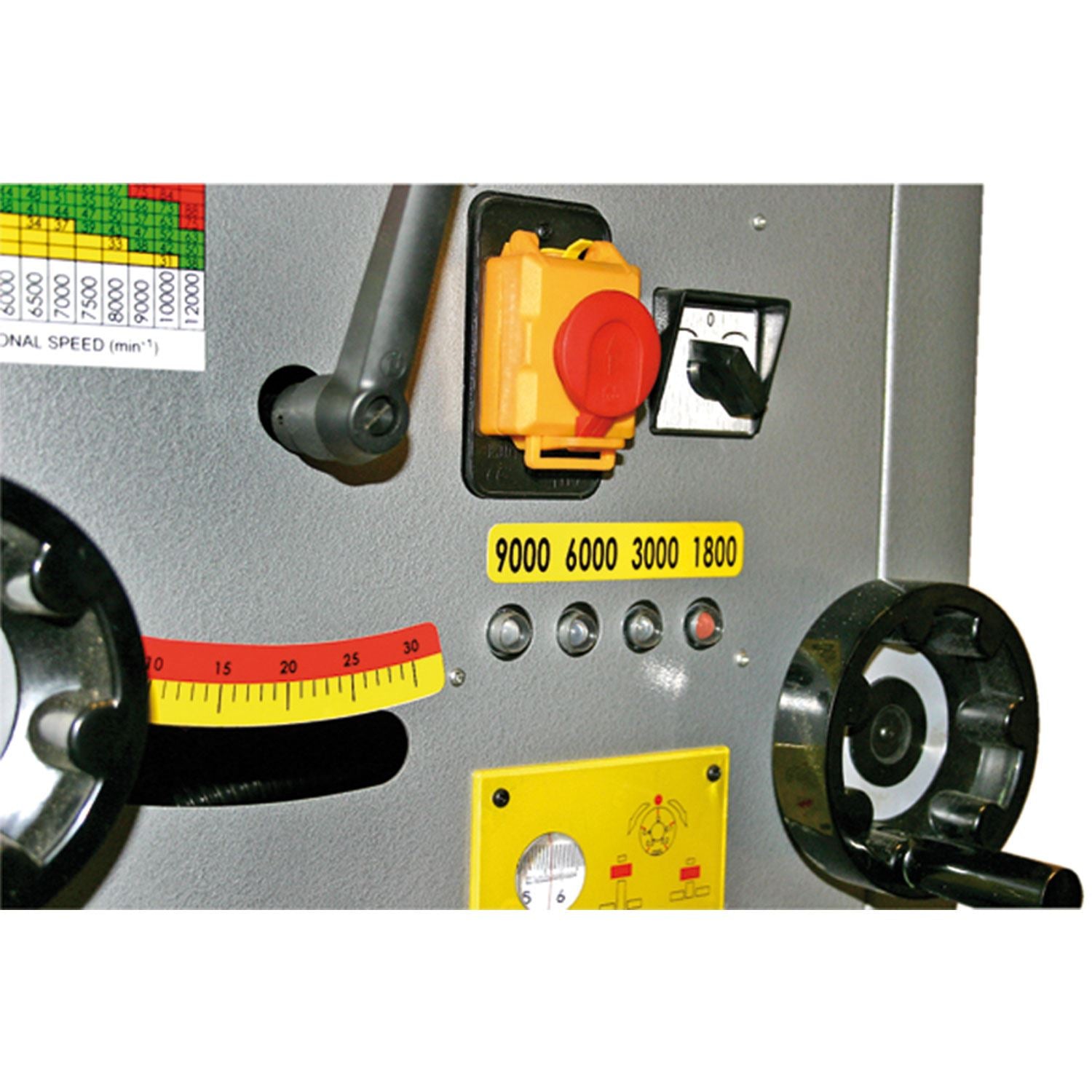

• 4 powerful working speeds to accommodate all demands

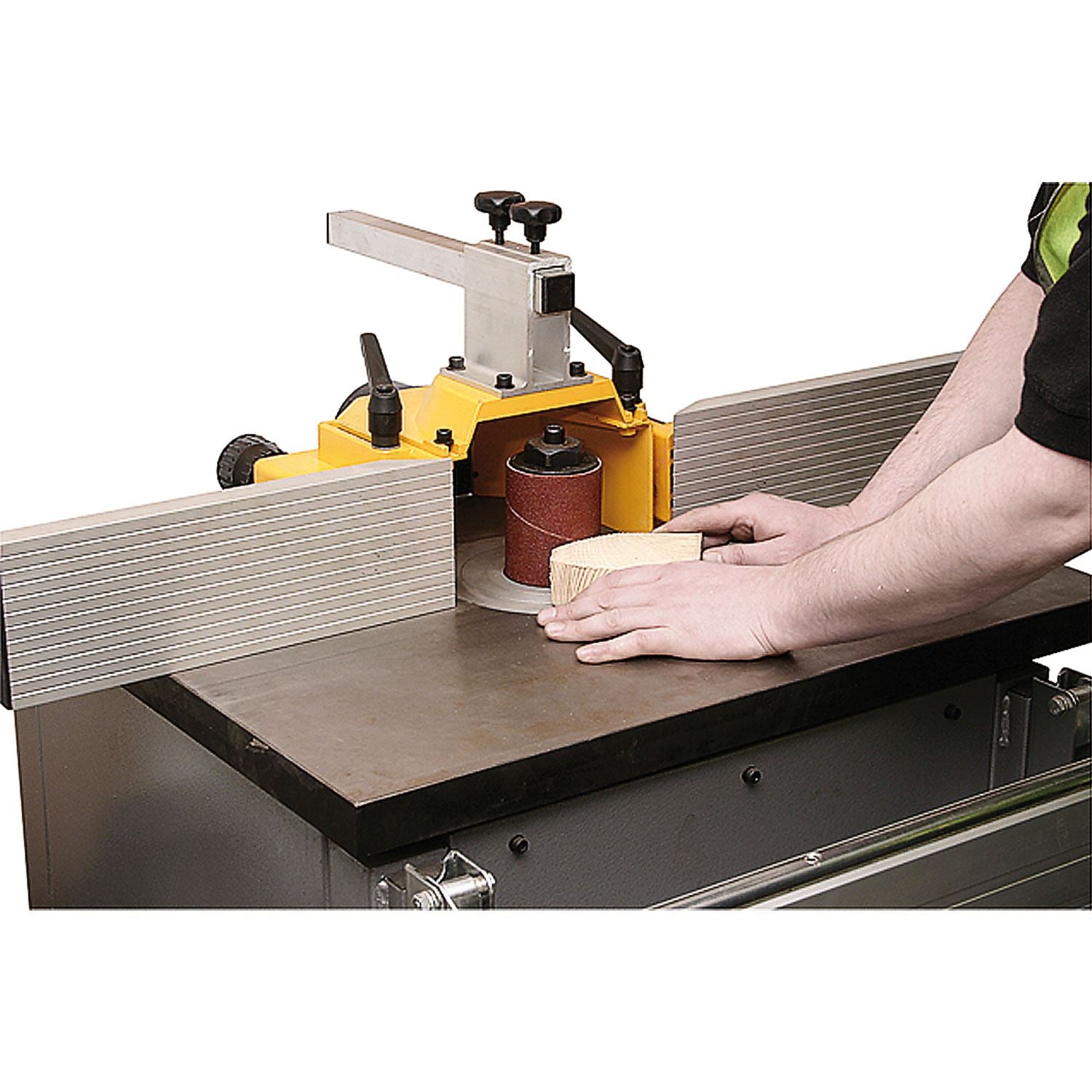

• Low speed for use with supplied sanding bobbin
• Integrated NVR switch for added safety
Machine shown with optional SIP Sliding Carriage (01457).

Technical Specification

• ITEM NO. 01456
• Input Supply: 230v (16A)
• Motor Power: 2.8kW (3.75hp)
• Spindle Speeds: 4 speeds; 1800rpm / 3000rpm / 6000rpm / 9000rpm
• Spindle Diameter: � 30mm
• Spindle Travel: 100mm
• Max. Tool Diameter: � 200mm
• Table Opening: 200mm
• Table Size: 710mm x 640mm
• Spindle Tilting: -10� - +30�
