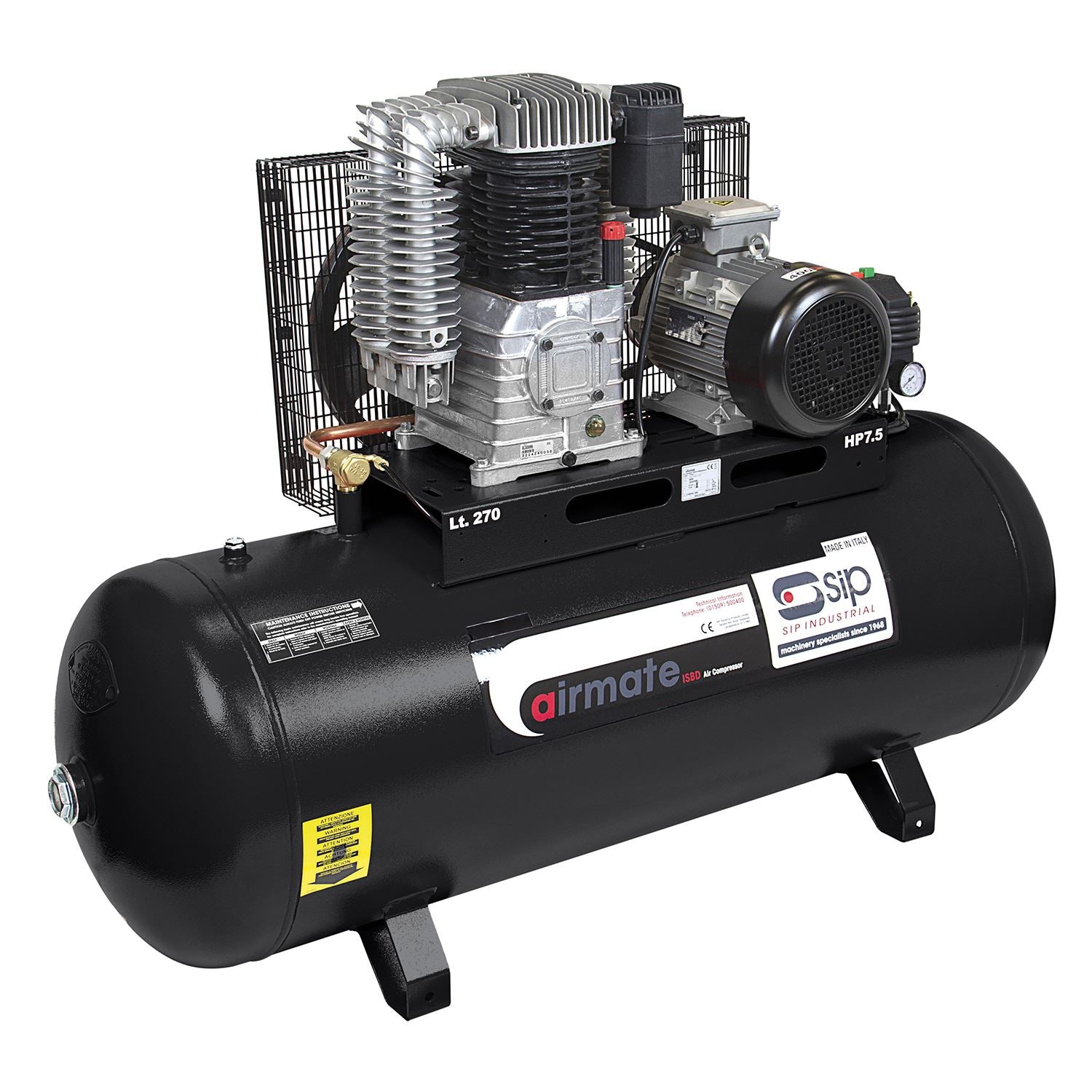

SIP Industrial ISBD7.5/270 270ltr Industrial Electric Compressor

The SIP ISBD7.5/270 270ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built to last and designed for consistently high performance plus superior compressed air production. Fitted with large interstage coolers, this compressor provides cooler air ideal for a variety of demanding environments.

A must-have premium compressor for heavy-duty industrial applications.

• Oil-lubricated industrial-grade belt-driven compressor
• Large interstage coolers for cooler air and reduced moisture
• Long-stroke cast iron cylinders for slower running and longer life
• Robust valve plate; individual valves for efficient performance
• SIP 10 year receiver anti-corrosion warranty

Technical Specification

• Input Supply: 400v (20A) 3-PHASE
• Motor Power: 7.5hp (5.6kW)
• Receiver Size: 270ltr
• Piston Displacement: 31.00CFM (878ltr/min)
• Free Air Delivery (FAD): 20.50CFM (580ltr/min)
• Max. Air Pressure: 160psi (11bar)
• Working Speed: 1200rpm
• No. of Cylinders: 2 cylinders
• No. of Stages: 2 stages
