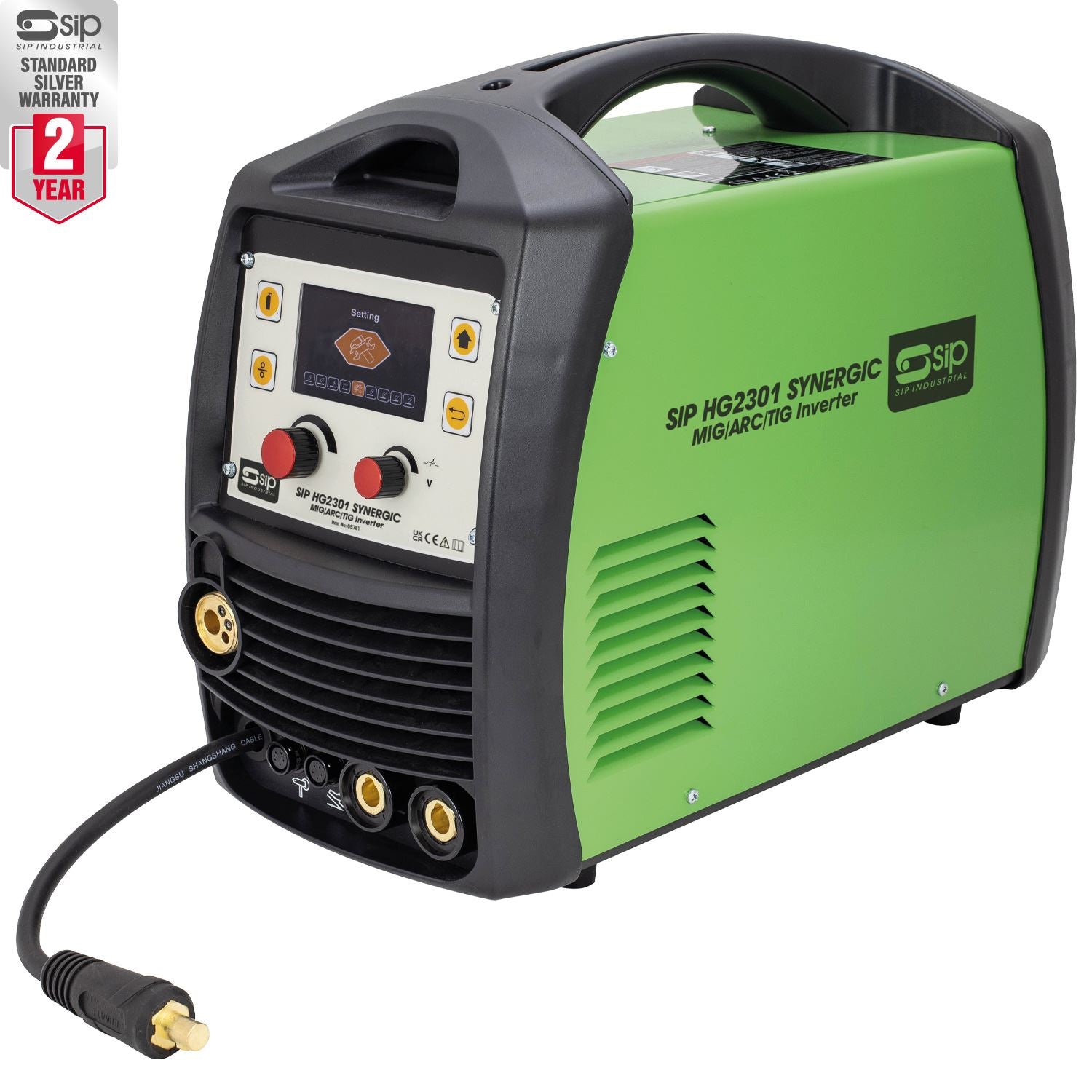

SIP Industrial HG2301 SYNERGIC MIG/ARC/TIG Inverter Welder

The SIP HG2301 SYNERGIC MIG/ARC/TIG Inverter Welder is a highly versatile, lightweight, and compact machine designed with powerful IGBT inverter and synergic technologies offering powerful output with mild steel, stainless steel and aluminium.

• Synergic curves for mild and stainless steels or aluminium
• 4-in-1 machine; Gas and Gasless MIG, ARC and TIG processes

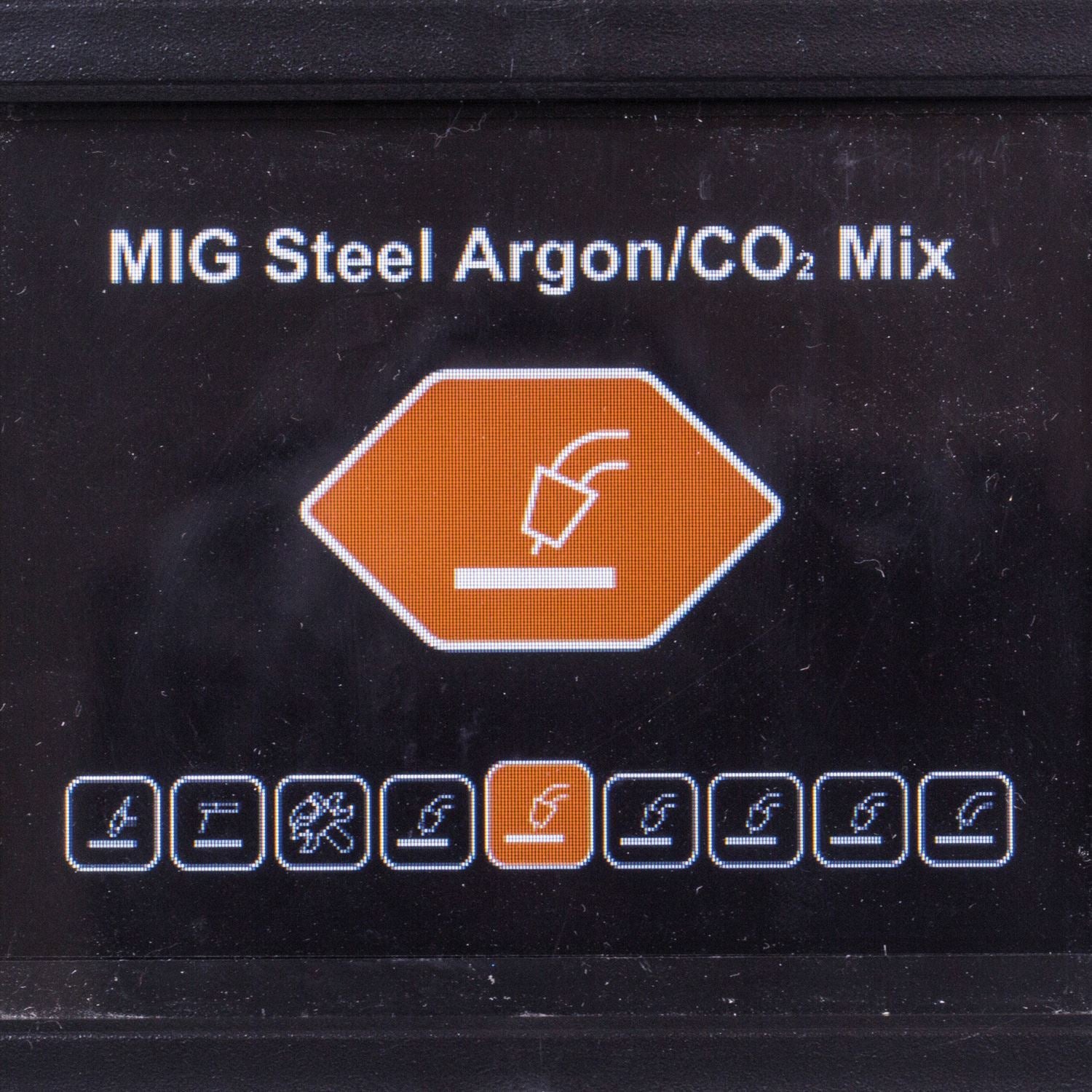

• Select your settings for automatically set weld parameters
• Extra low current function for welding thinner materials
• Microprocessor-controlled for added performance

Technical Specification

• ITEM NO. 05781
• Input Supply: 230v (16A)
• Output Current: 40A - 200A (MIG) / 10A - 180A (ARC) / 10A - 180A (TIG)
• Output Voltage: 16v - 24v (MIG) / 20.4v - 27.2v (ARC) / 10.4v - 17.2v (TIG)
• Duty Cycle: 200A @ 40%
• Electrode Diameter: � 1.6mm - 6mm
• Wire Diameter: � 0.6mm - 1mm
• Wire Spool Size: 0.7kg - 5kg
• Protection Level: IP21S
• Insulation Class: Class A
