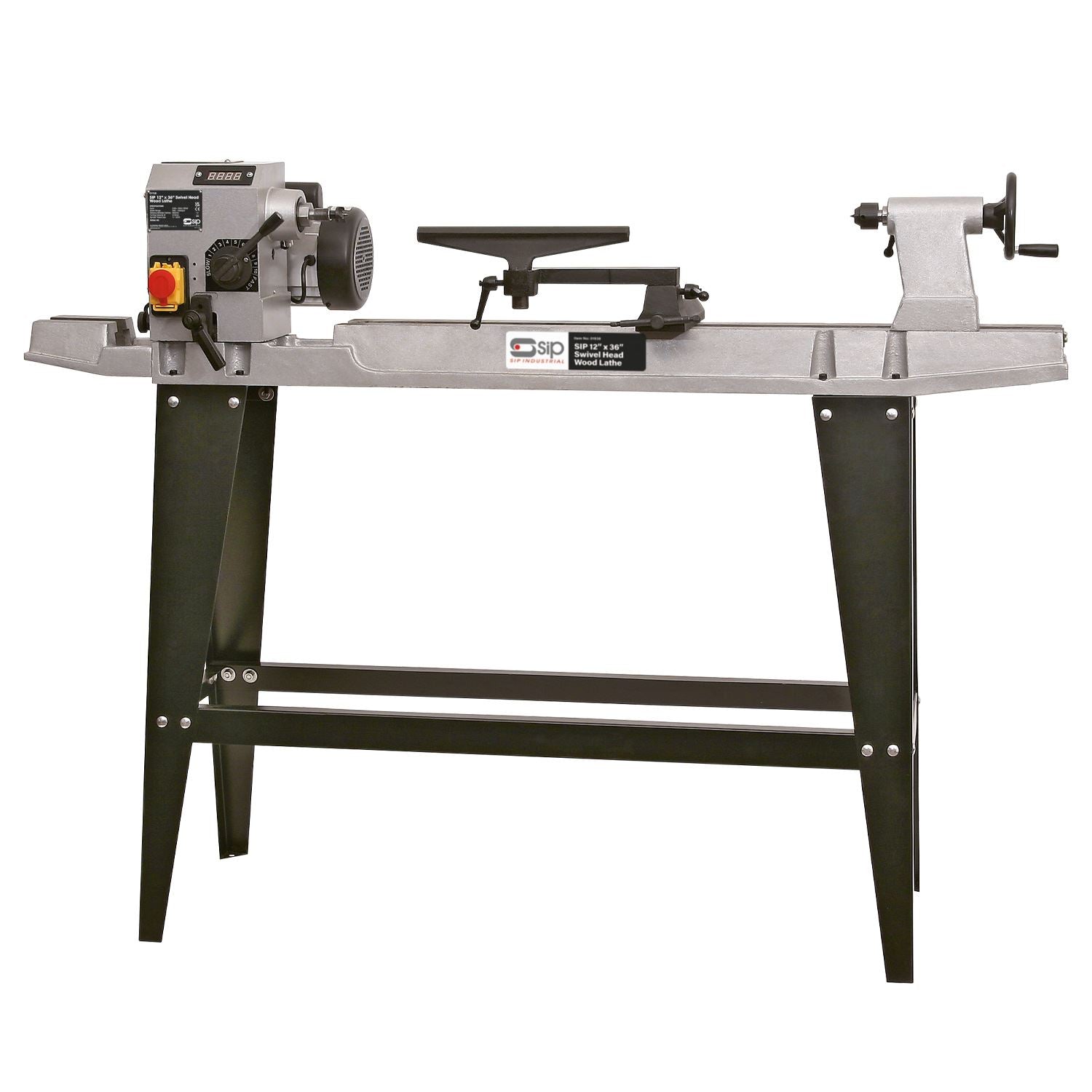

SIP Industrial 12" x 36" Swivel Head Wood Lathe

The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust, adaptable lathe to accurately shape, turn, drill and sand pieces to the desired specification.

For added functionality, the headstock swivel 360� with four locking positiong to allow outboard turning of larger wood materials. The lathe bed, headstock (MT1) and tailstock (MT2) are manufactured from heavy-duty cast iron and mounted on pressed steel legs with cross braces. A hollow tailstock is also fitted for long hole boring.

Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.

• 3/4" x 16TPI spindle thread size
• 300mm max. turning diameter (900mm between centres)
• Pressed steel legs with cross braces
• Heavy-duty cast iron lathe bed
• Digital speedometer display up to 2000rpm
• 10 setting easy-change speed handle

Technical Specification

• ITEM NO. 01938
• Input Supply: 230v (13A)
• Motor Power: 550w (0.75hp)
• Speed Range: 500rpm - 2000rpm
• Distance Between Centres: 900mm (36")
• Turning Capacity: 310mm (12")
• Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
• Drive Spur Size: 1 Morse Taper
• Tailstock Rotating Centre Size: 2 Morse Taper
• Noise Level: 68dB(A)
