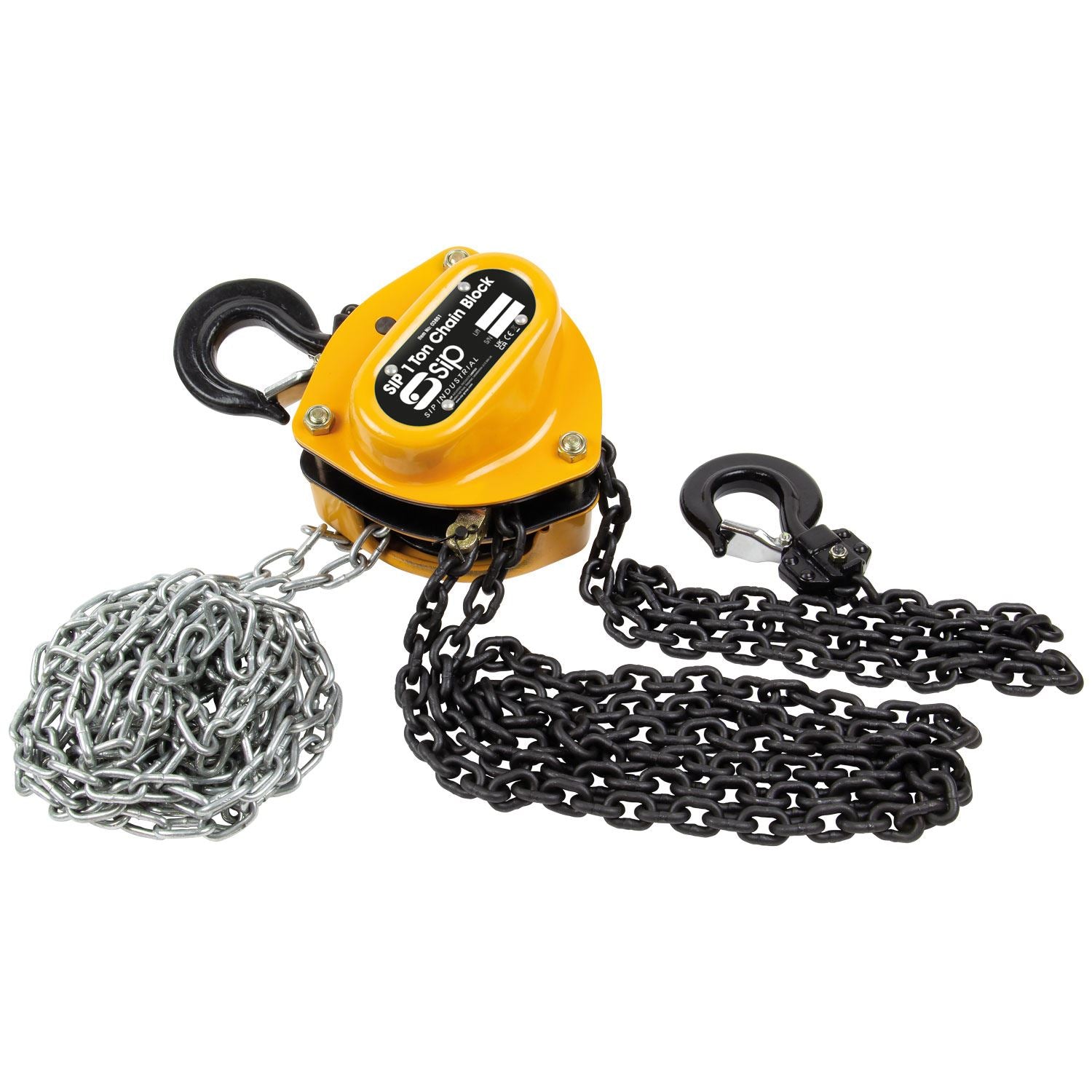

SIP Industrial 1 TONNE Gantry Crane Chain Block

The SIP 1 TONNE Gantry Crane Chain Block is a heavy-duty block assembly designed for industrial-grade manual lifting, and thus utilises a robust mechanism with low resistance for powerful performance and low operator effort.

Particularly complements the SIP 1 TONNE Gantry Crane Frame and SIP 1 TONNE Gantry Crane Beam Trolley.

• Chain block assembly with heavy-duty manual chain lift
• Low resistance and low effort system for ease-of-use
• Industrial mechanism with hardened shaft and gears
• Short headroom for quick and easy installation

Technical Specification

• ITEM NO. 03845
• Suitable For: 03849
• Safe Working Load: 1 TONNE
• Block Headroom: 317mm
• Load Chain Diameter: � 6mm
• Max. Hook Capacity: � 40mm
• Overall Block Depth: 158mm
• Overall Block Width: 140mm
• Standard Lift: 2.5mtr
