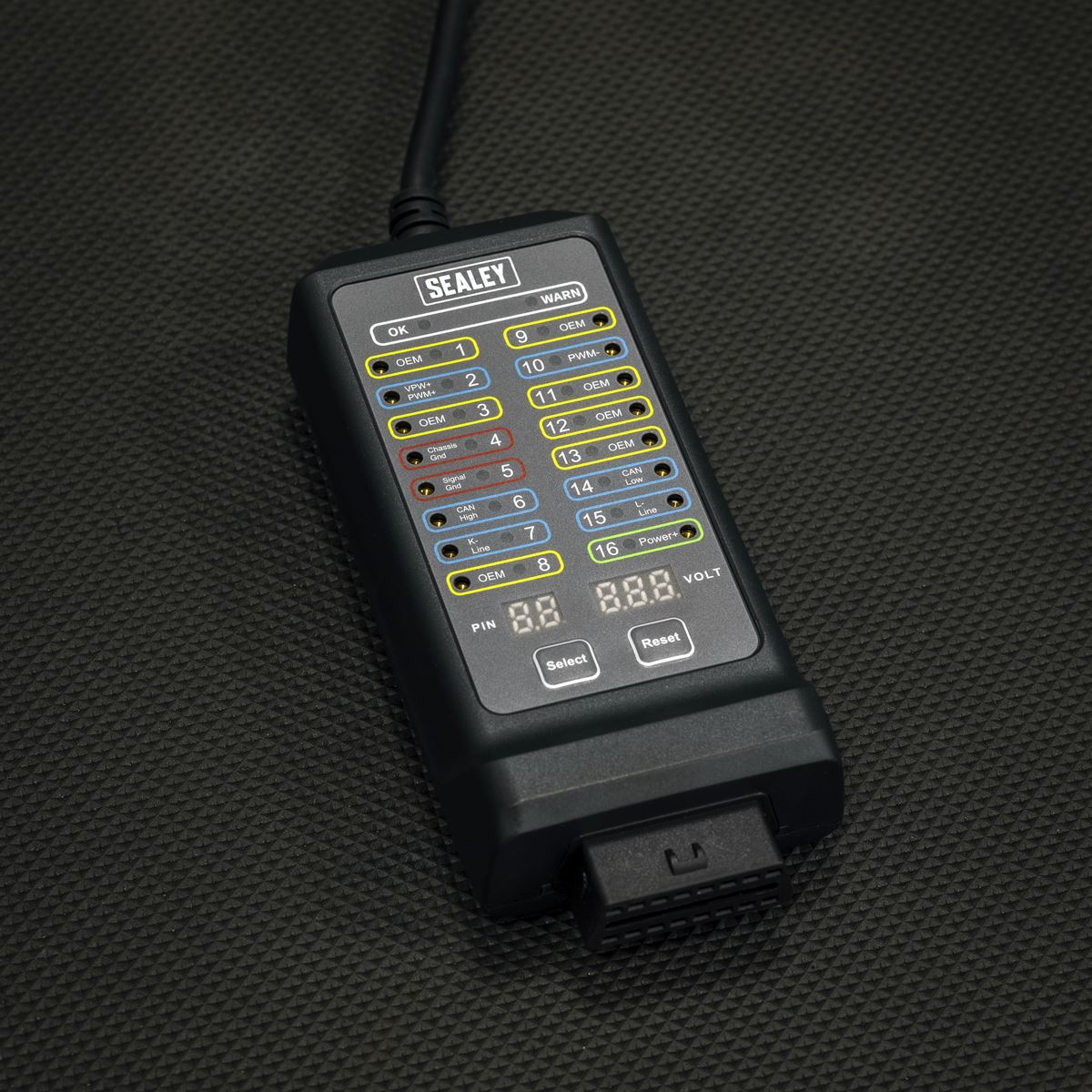

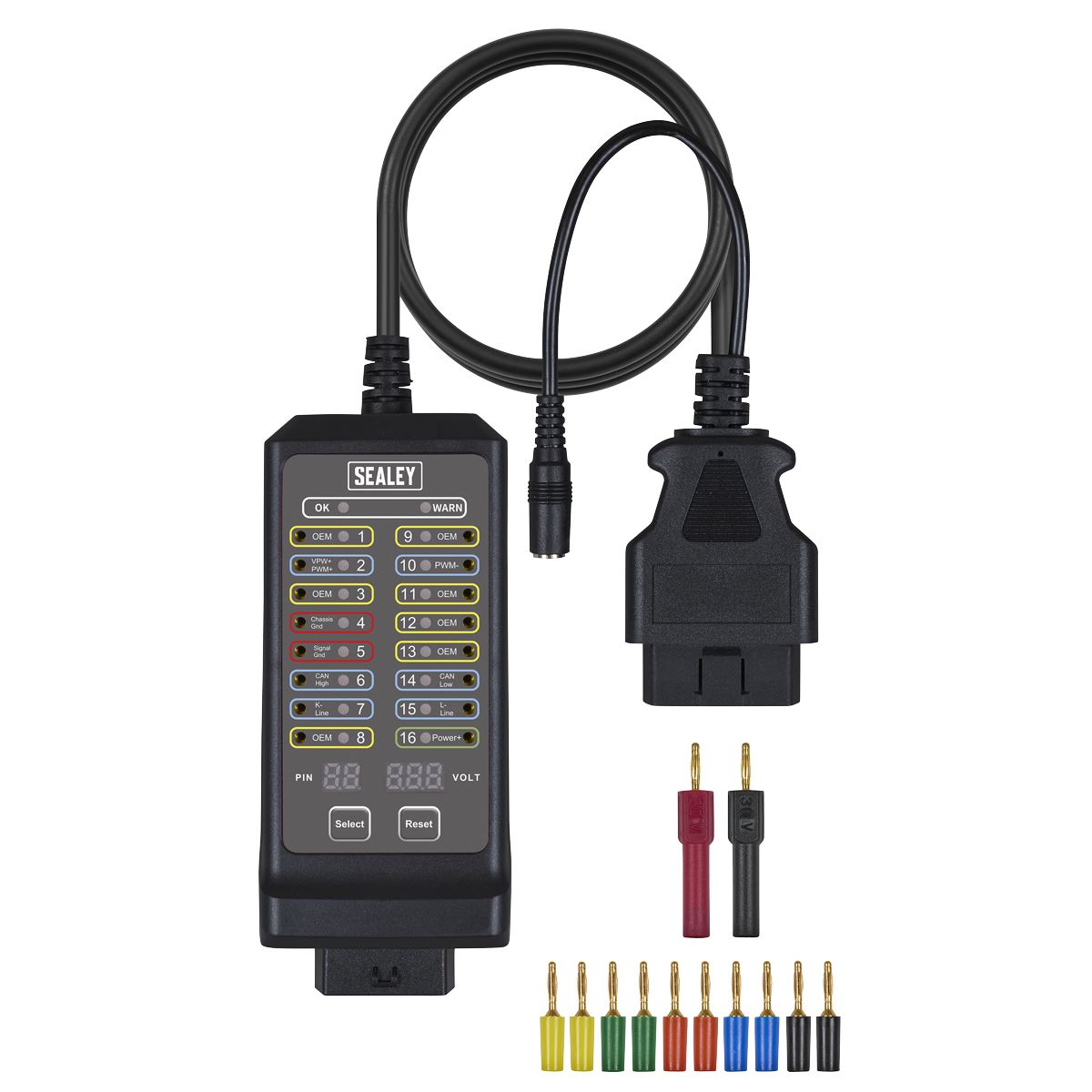

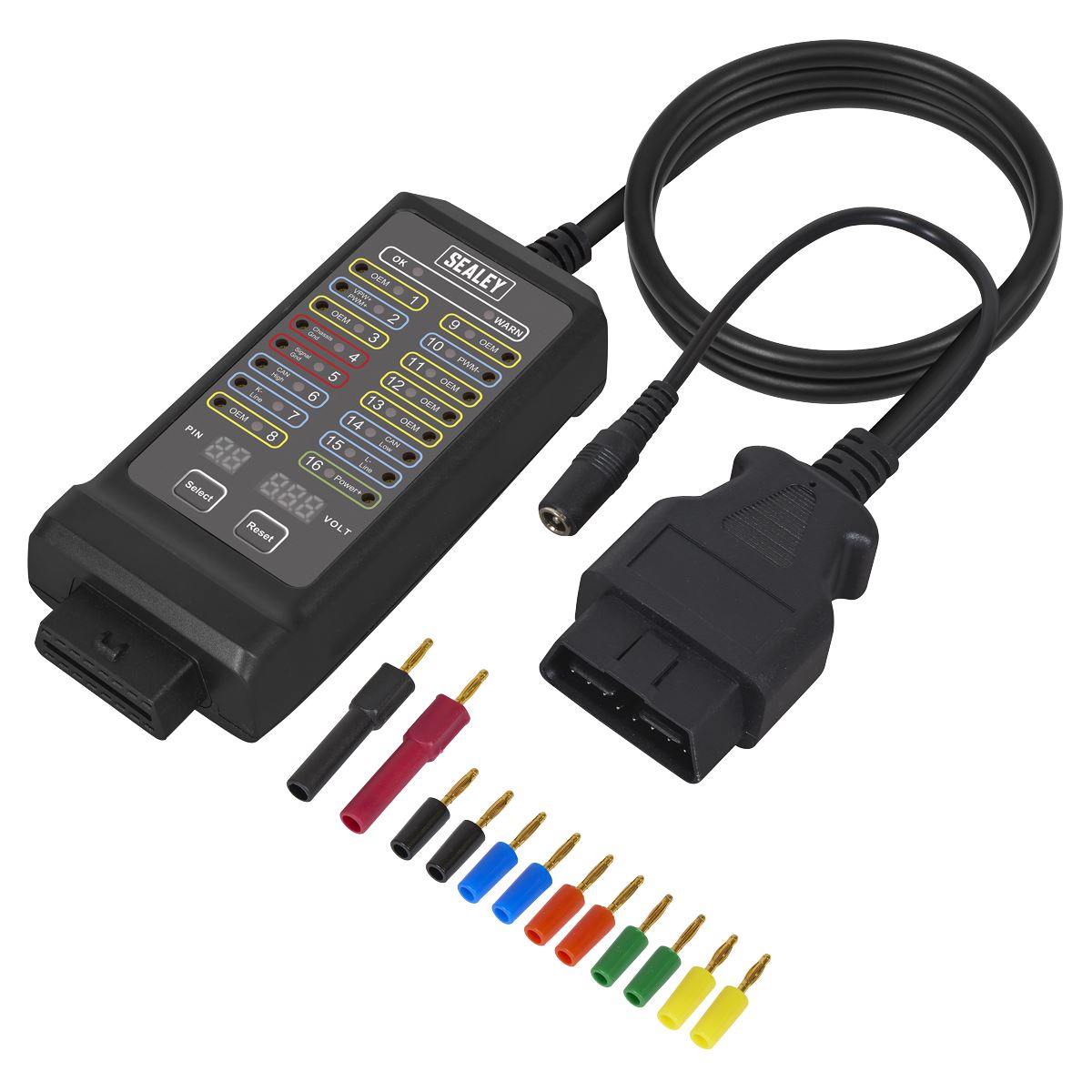

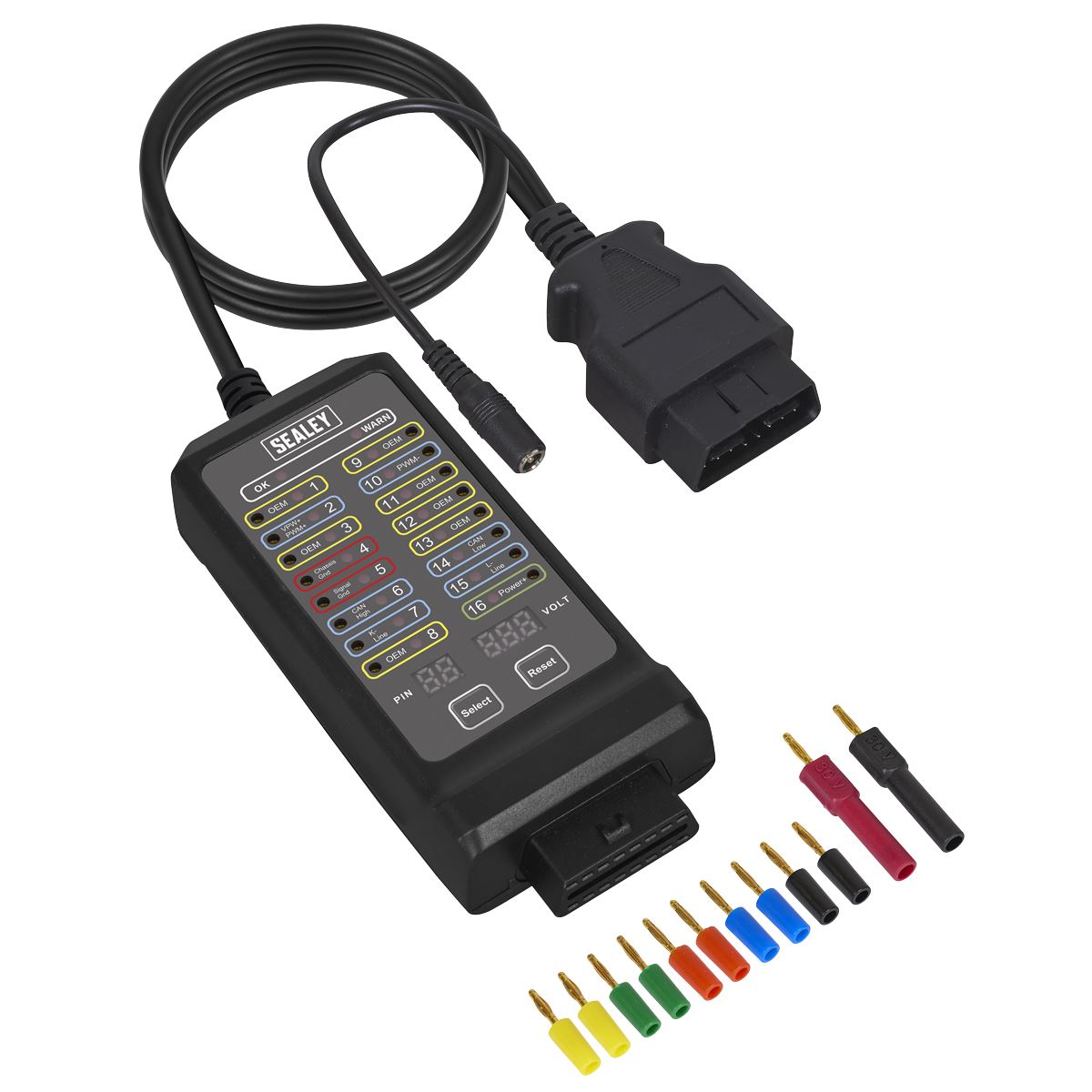

Sealey OBD Breakout Box 16-Pin 12V/24V VS8813

Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.

• Test the on-board diagnostics port for any faults before connecting other diagnostic devices to the DLC.
• Designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
• Can also be connected to multimeters and oscilloscopes.
• Compatible with 12 and 24V systems.
• Selectable pin voltage indicator shows the real-time voltage of the selected pin.

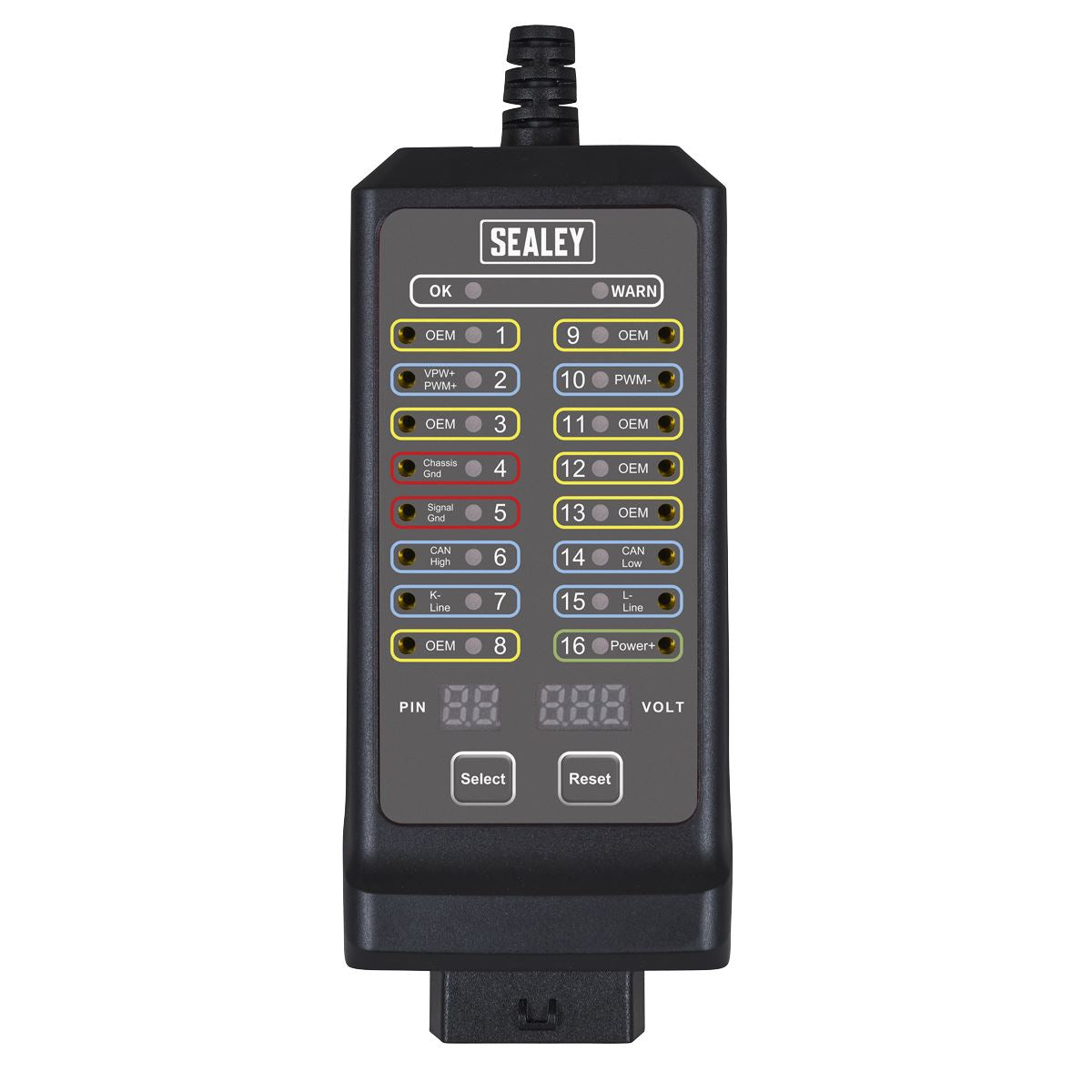

• Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
• Overload protection protects any connected diagnostic equipment from damage.
• Model No. VS8813
