Aten HDMI Extender White VE807-AT-G Repeater

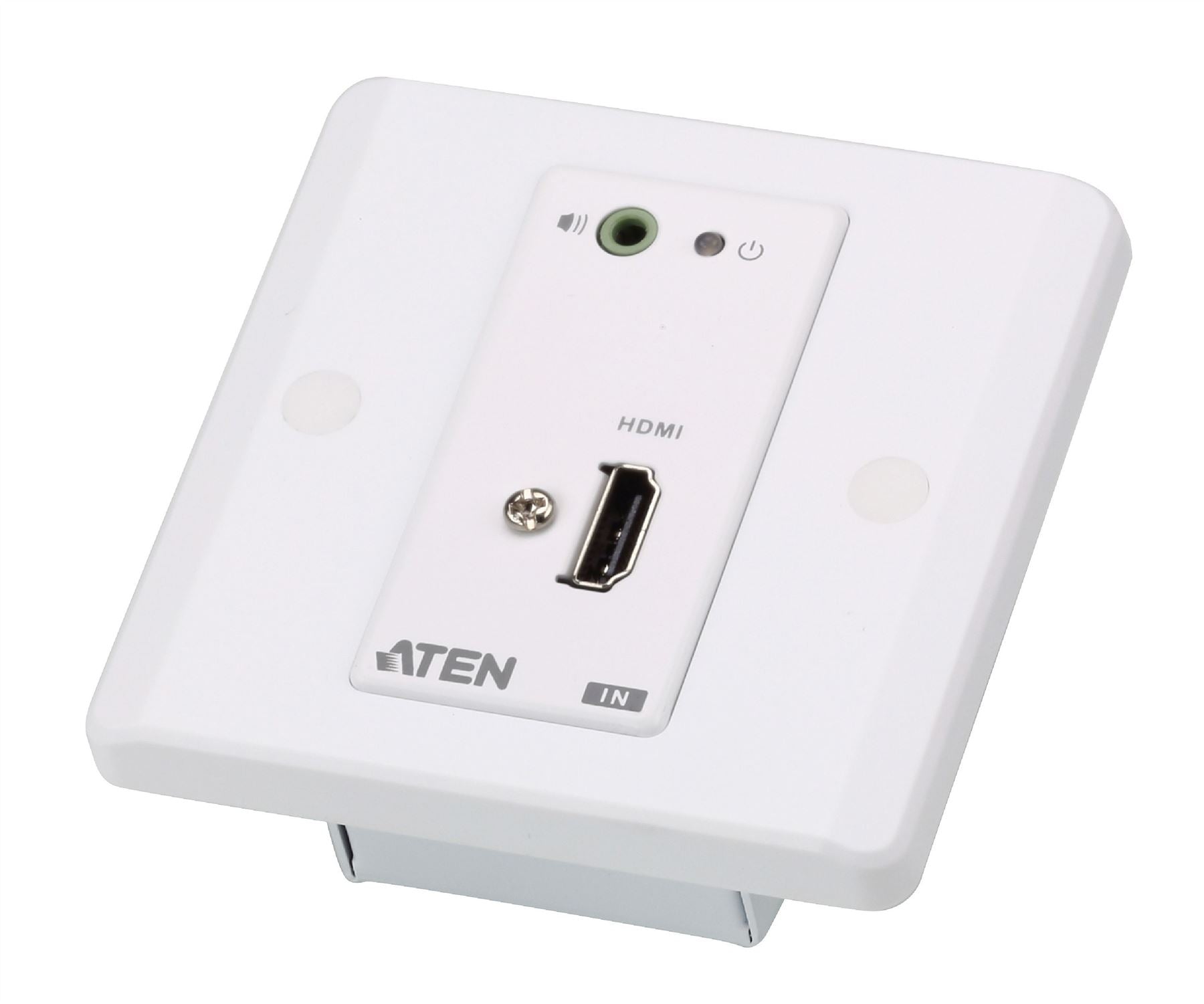

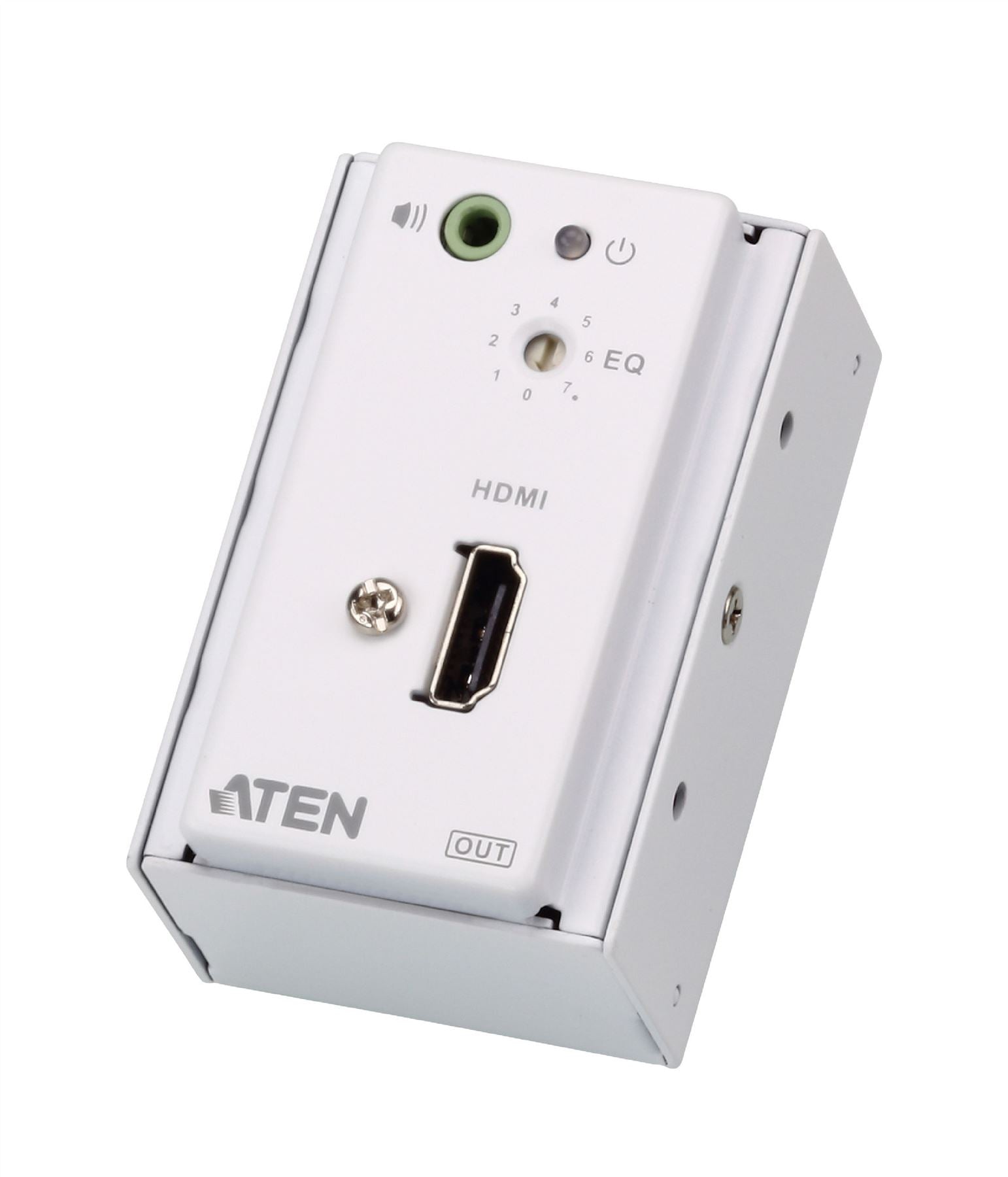

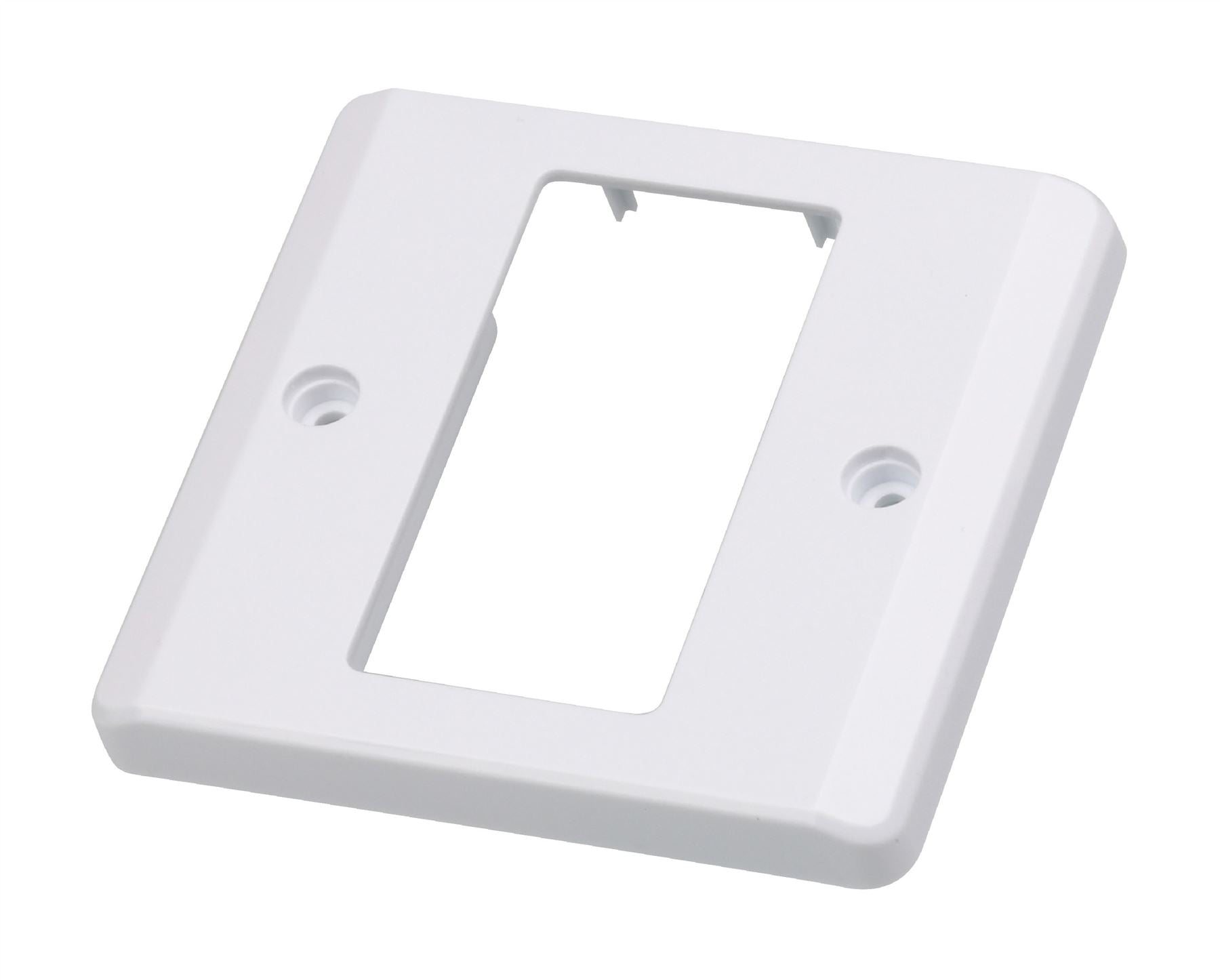

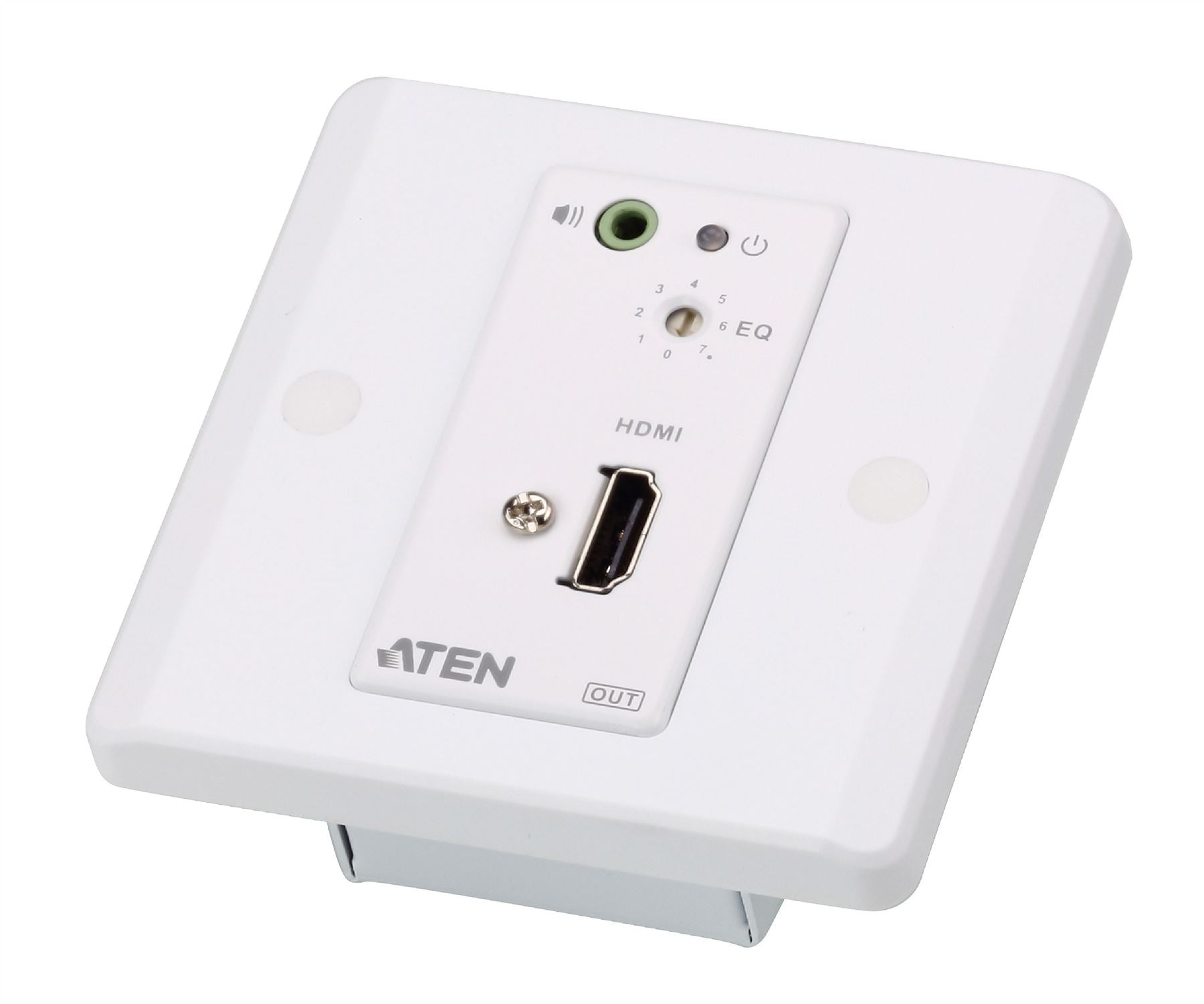

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.

The VE807 can be easily powered at either the transmitter or receiver side using a second Cat 5e/6 cable. The VE807's compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public's view.

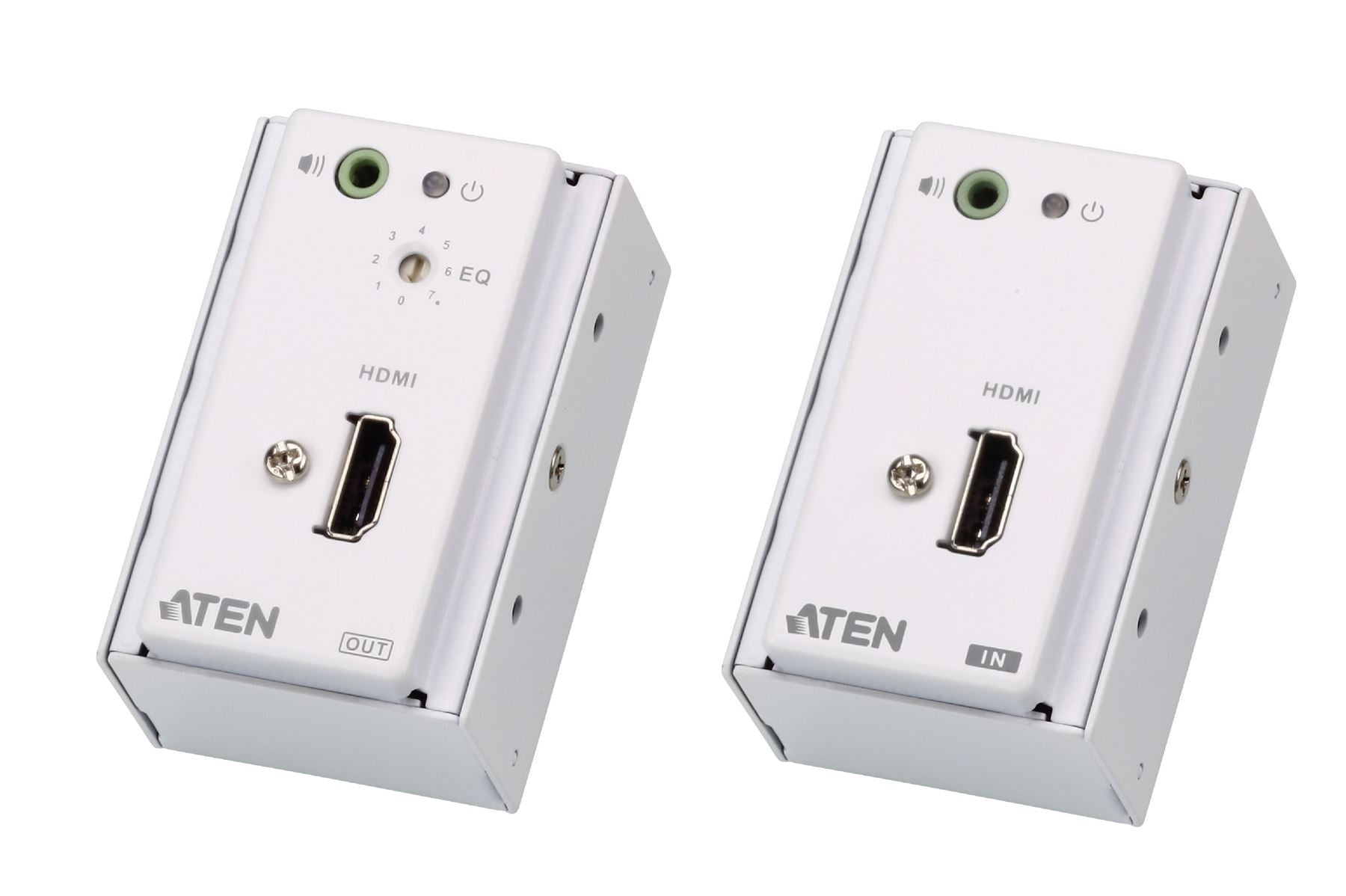

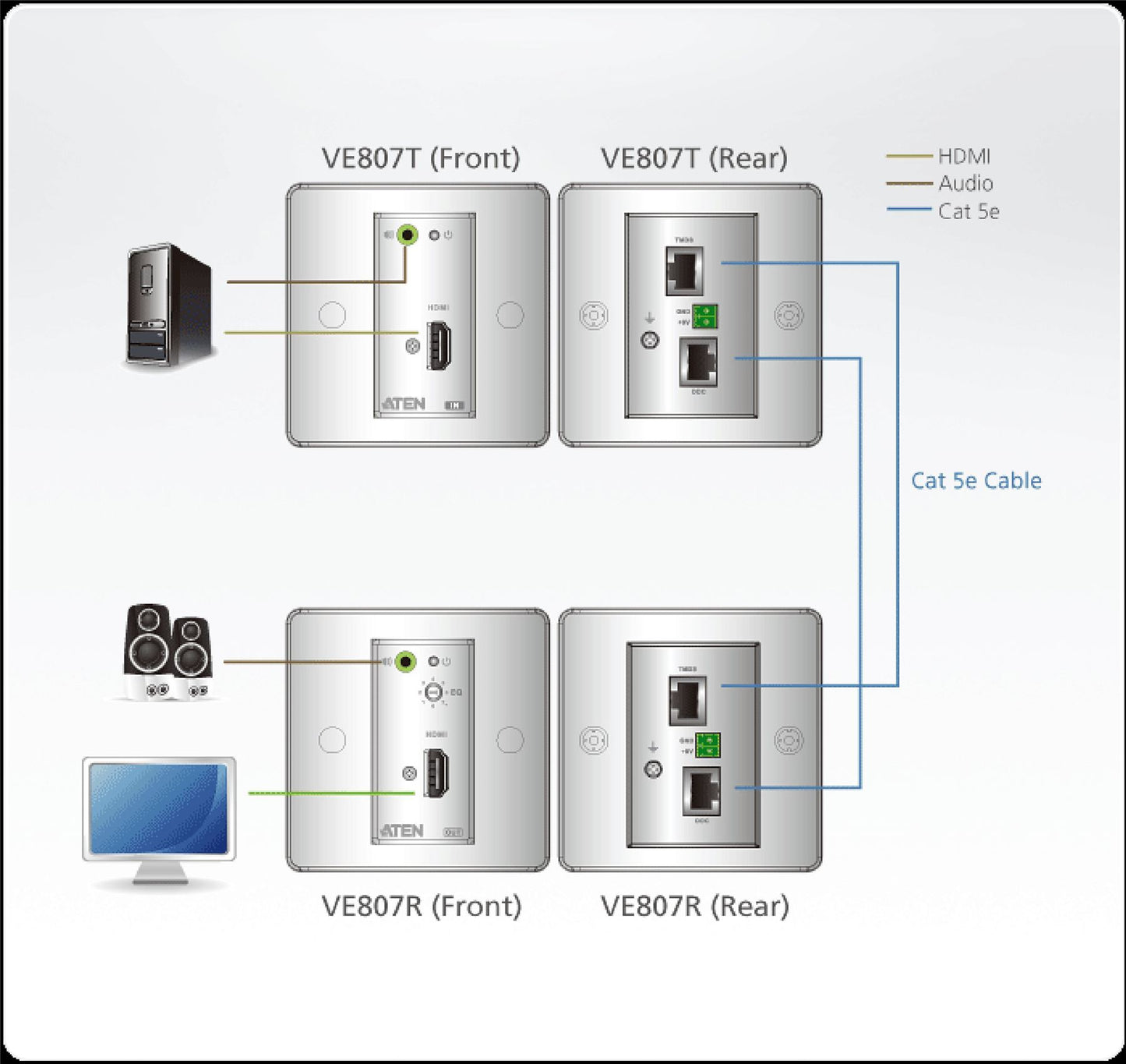

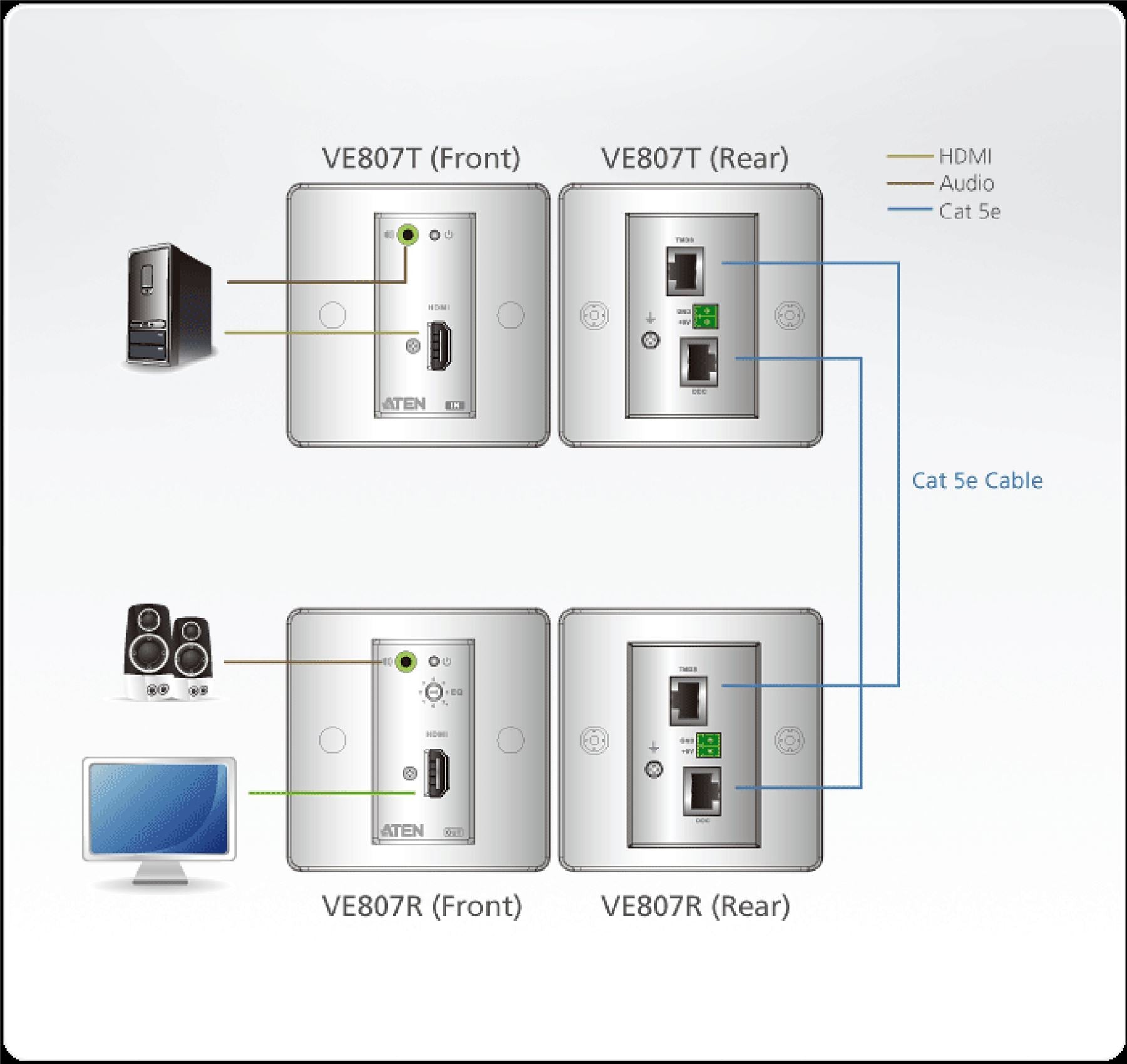

Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video and another to supply power*
Remotely powered from either the transmitter or receiver side**
Extends the distance between HDMI source and display
Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m
HDMI (3D, Deep Color); HDCP compatible
Supports 8 segment equalization adjustment via switch
Supports wide screen formats
Supports hot- plugging
Supports stereo audio
Built- in 8KV/ 15 KV ESD protection
Plug- and- play with no software installation required
LED indication of power sources / connection status
* A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver
**A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit
